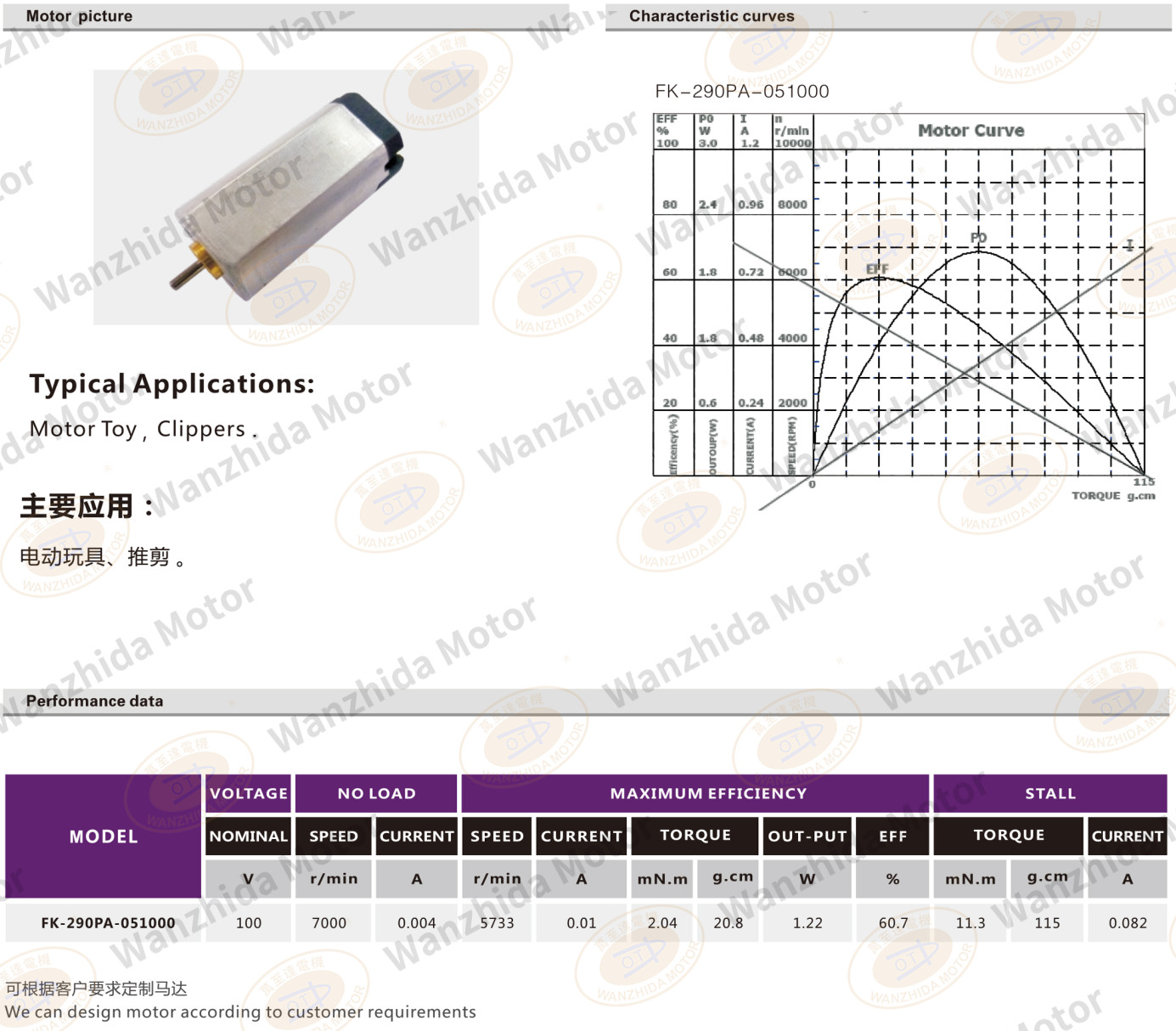

OT-FK-290PA Brush DC motor

Application : Personal care,Model airplane,Beauty care
Model : OT-FK-290PA
Voltage (V) : 100V
Speed (rpm) : 7000rpm
Electric : 0.01A
Rated torque : 2.04mN.m

We can easily change the shaft,flange structure and connectors to meet different applocation needs.If you are further adjusting the output components,bearings,and windings,you can contact our sales engineers and we will provide you with a customized solution.
OT-FK-290PA Brush DC motor-wanzhida motor
OT-FK-290PA Brush DC motor-wanzhida motor

Product application

Personal care

The coreless motor eliminates the electrical energy loss caused by eddy current formation in the iron core, and its weight and rotational inertia are small, thereby reducing the mechanical energy loss of the rotor itself. Therefore, the coreless motor has become the most commonly used motor in personal care.

Model airplane

The remote control model aircraft requires a light takeoff weight and stable power output, and the coreless motor is the best choice. It can be used as both a power motor for the main rotor and a tail rotor motor, and is also the protagonist of the servo in many integrated control boards of micro air vehicles.

Beauty care

Micro motors can be used in personal care products such as hair dryers, electric eyebrow pens, massagers (eyes, head), electric razors, facial cleaners, electric hair curlers, electric toothbrush, etc.
